    AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle
    Large Image : AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle
    Next: NEW 100km 230V 50HZ Electric Fence Energiser Charger Poly Wire Tape Posts
    Product Details:
    Place of Origin : China
    Brand Name :Lydite
    Certification :CE,ISO9001
    Model Number :LFL500
    Payment & Shipping Terms:
    Packaging Details :4pcs/carton
    Delivery Time :Shipped in 5 days after payment
    Payment Terms :L/C ,T/T,Western Union,Paypal,D/P
    Supply Ability :1000pcs
    Price :USD$60-80/pc
    Minimum Order Quantity :50
    Product Details Introduction

    AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle

    Product Description

    • Power supply: 230 volts 50Hz

      Consumption: 0.047 A / hour

      Voltage Vacuum: 10000 volts

      Delivered power vacuum: 7 joules

      Power output at 500 ohms: 4.1 joules

      Effective length: 120 km

      Effective area: 900km2/ 90000ha

      Plastic case. Dimensions: 220x100x275 mm

      Weight: 2.5 kg

    Feature&Benefit



         Low impedance energizer
               Designed to deliver power to the end of the fence even under heavy load e.g. foliage, undergrowth.

    ·         Built-in Lightning Protection Design

               User safety and reliable animal control with built in lightning and short circuit protection

    ·         LED Indicator

               LED indicator pulses when energizer is working.

    ·         AC Power,Low maintenance design

              Simple ‘plug and play’ operation ensures successful installation even for inexperienced users.

    ·         Weatherproof Design

                Enable outdoor mounting

    ·         Multiple mounting options,heavy-duty case with fixing holes
               Energizer is able to be simply mounted on the wall, fence post (nailed) or steel post.

    ·         CE Listed

    ·         IP54 Listed



     Applications

    Widely and safely contain bulls, goats, horses, pigs, predators, pigs and sheep

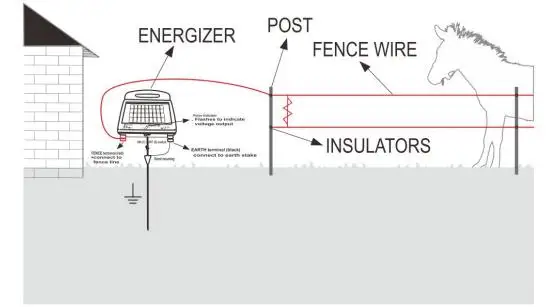

    Principle of Operation

    Ø   MLD-100A is an  electric  fence  energizer  for farm  industry  generating  an  electric

    pulse,   which travels  along the wire fixed on the bar. At  the same time, the energizer

    links with earth.

    Ø   Therefore, when animal,  inside or outside, touches  the wire, an electric  circuit forms

    and the animal will be shocked by the pulse  and keep away with wire. As a result, the

    animal within zone is protected and the ones outside the zone will be kept away.

    Ø   MLD-100A is easy  to install  and use, and  could protect the  animals or plants  inside

    the  zone  effectively.  Compared   with  traditional  wood  bar  or  fence,   MLD-100Asystem could provide better and more stable protection service with much low cost.

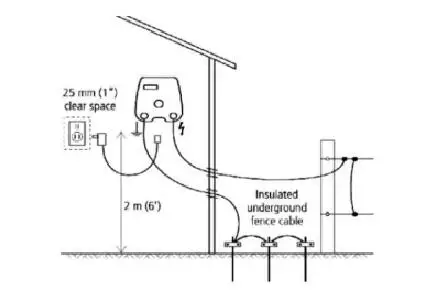

    Installation

    Indoor installation:

    a.   A appropriate place for fixing the energizer;

    b.   Out of touch of children and animals

    c.   Link the black grounding icon with clip to ground;

    d.   Link the red pulse output icon with clip to wire;

    e.   Connect with transformer and choose the mode.

    AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle

    NOTE:

    The MLD-100A can  be powered

    from  AC  mains  power   supply

    beside  the   battery   and  solar

    power   to   generate   the   high

    voltage pulses to the fencing.

    Outdoor installation:

    a.   in most cases, the energizer should be fixed on the wooden bar

    b.   link the black grounding icon with clip to ground;

    c.   link the red pulse output icon with clip to wire;

    d.   connect with transformer and choose the mode.

    Typical solutions

    If the conductivity of ground is not good because of dry soil or sand,  the pulse circuit

    will  not form  even  when  animal  touches  the wire.  Then  we  make adjustment  of

    fixing the earth  wire to bars  also. By doing so,  the system could work  as efficiently

    as it does in common cases.

    AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle

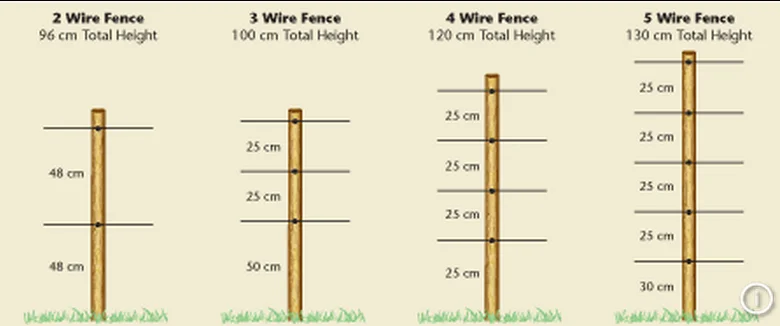

    Besides,  the line  design  will  vary greatly  due  to  animal  height, weight,  and  trait  difference,



    please check below typical line design for different animals.



    AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle

    AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle

    AC Power,Low Maintenance Design Electric Fence Energizer For Horse and Cattle
